Grammar of data transformation

Data visualization and transformation

Data Science with R

Data frames and `tibble`s

NYC Flights

To demonstrate data transformation we will use flights, a tibble in the nycflights13 R package.
The data set includes characteristics of all flights departing from New York City (JFK, LGA, EWR) in 2013.

library(tidyverse)
library(nycflights13)

`flights` – dimensions

Number of rows:

nrow(flights)

[1] 336776

Number of columns:

ncol(flights)

[1] 19

`flights` – first look with `glimpse()`

glimpse(flights)

Rows: 336,776
Columns: 19
$ year           <int> 2013, 2013, 2013, 2013, 2013, 2013,…
$ month          <int> 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,…
$ day            <int> 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,…
$ dep_time       <int> 517, 533, 542, 544, 554, 554, 555, …
$ sched_dep_time <int> 515, 529, 540, 545, 600, 558, 600, …
$ dep_delay      <dbl> 2, 4, 2, -1, -6, -4, -5, -3, -3, -2…
$ arr_time       <int> 830, 850, 923, 1004, 812, 740, 913,…
$ sched_arr_time <int> 819, 830, 850, 1022, 837, 728, 854,…
$ arr_delay      <dbl> 11, 20, 33, -18, -25, 12, 19, -14, …
$ carrier        <chr> "UA", "UA", "AA", "B6", "DL", "UA",…
$ flight         <int> 1545, 1714, 1141, 725, 461, 1696, 5…
$ tailnum        <chr> "N14228", "N24211", "N619AA", "N804…
$ origin         <chr> "EWR", "LGA", "JFK", "JFK", "LGA", …
$ dest           <chr> "IAH", "IAH", "MIA", "BQN", "ATL", …
$ air_time       <dbl> 227, 227, 160, 183, 116, 150, 158, …
$ distance       <dbl> 1400, 1416, 1089, 1576, 762, 719, 1…
$ hour           <dbl> 5, 5, 5, 5, 6, 5, 6, 6, 6, 6, 6, 6,…
$ minute         <dbl> 15, 29, 40, 45, 0, 58, 0, 0, 0, 0, …
$ time_hour      <dttm> 2013-01-01 05:00:00, 2013-01-01 05…

`flights` – first look with `names()`

names(flights)

 [1] "year"           "month"          "day"
 [4] "dep_time"       "sched_dep_time" "dep_delay"
 [7] "arr_time"       "sched_arr_time" "arr_delay"
[10] "carrier"        "flight"         "tailnum"
[13] "origin"         "dest"           "air_time"
[16] "distance"       "hour"           "minute"
[19] "time_hour"

`flights` – first look with `head()`

head(flights)

# A tibble: 6 × 19
   year month   day dep_time sched_dep_time dep_delay
  <int> <int> <int>    <int>          <int>     <dbl>
1  2013     1     1      517            515         2
2  2013     1     1      533            529         4
3  2013     1     1      542            540         2
4  2013     1     1      544            545        -1
5  2013     1     1      554            600        -6
6  2013     1     1      554            558        -4
# ℹ 13 more variables: arr_time <int>,
#   sched_arr_time <int>, arr_delay <dbl>, carrier <chr>,
#   flight <int>, tailnum <chr>, origin <chr>, dest <chr>,
#   air_time <dbl>, distance <dbl>, hour <dbl>,
#   minute <dbl>, time_hour <dttm>

`tibble` vs. data frame

tibble: an opinionated version of the R data frame
All tibbles are data frames, but not all data frames are tibbles!
Two main differences between a tibble and a data frame:
- Printing
- Stricter subsetting

Printing - `tibble`s

Display first 10 rows and all of the columns that fit on the screen will display, along with the type of each column.

flights

# A tibble: 336,776 × 19
    year month   day dep_time sched_dep_time dep_delay
   <int> <int> <int>    <int>          <int>     <dbl>
 1  2013     1     1      517            515         2
 2  2013     1     1      533            529         4
 3  2013     1     1      542            540         2
 4  2013     1     1      544            545        -1
 5  2013     1     1      554            600        -6
 6  2013     1     1      554            558        -4
 7  2013     1     1      555            600        -5
 8  2013     1     1      557            600        -3
 9  2013     1     1      557            600        -3
10  2013     1     1      558            600        -2
# ℹ 336,766 more rows
# ℹ 13 more variables: arr_time <int>,
#   sched_arr_time <int>, arr_delay <dbl>, carrier <chr>,
#   flight <int>, tailnum <chr>, origin <chr>, dest <chr>,
#   air_time <dbl>, distance <dbl>, hour <dbl>,
#   minute <dbl>, time_hour <dttm>

Printing - `data.frame`s

(Attempt to) display all of the data, or die (crash) trying (if the dataset is too large)!

cars

   speed dist
1      4    2
2      4   10
3      7    4
4      7   22
5      8   16
6      9   10
7     10   18
8     10   26
9     10   34
10    11   17
11    11   28
12    12   14
13    12   20
14    12   24
15    12   28
16    13   26
17    13   34
18    13   34
19    13   46
20    14   26
21    14   36
22    14   60
23    14   80
24    15   20
25    15   26
26    15   54
27    16   32
28    16   40
29    17   32
30    17   40
31    17   50
32    18   42
33    18   56
34    18   76
35    18   84
36    19   36
37    19   46
38    19   68
39    20   32
40    20   48
41    20   52
42    20   56
43    20   64
44    22   66
45    23   54
46    24   70
47    24   92
48    24   93
49    24  120
50    25   85

Stricter subsetting – `tibble`s

Warning + NULL if variable not found.

flights$apple

Warning: Unknown or uninitialised column: `apple`.

NULL

Stricter subsetting – `data.frame`s

Only NULL if variable not found.

cars$apple

NULL

`dplyr`

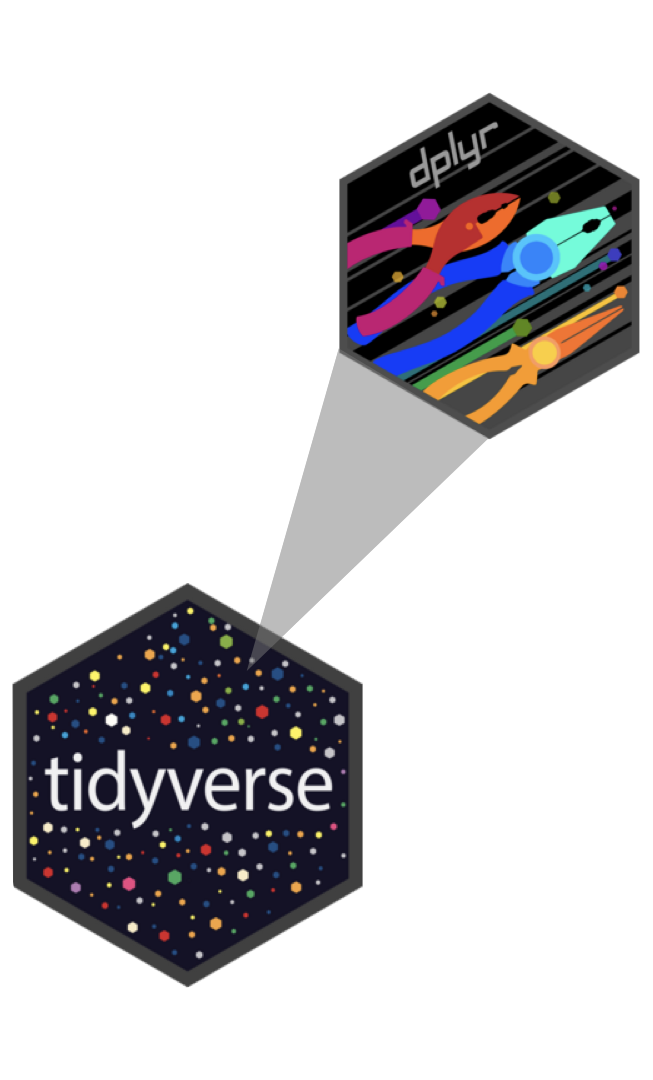

dplyr \(\in\) tidyverse

dplyr is tidyverse’s primary package for data transformation
Package website: dplyr.tidyverse.org

Row operations

slice(): chooses rows based on location
filter(): chooses rows based on column values
arrange(): changes the order of the rows
sample_n(): take a random subset of the rows

`slice()`

Display the first five rows of flights:

1flights |>
2  slice(1:5)

1: Take the flights data frame, and then,
2: Slice its first five rows

# A tibble: 5 × 19
   year month   day dep_time sched_dep_time dep_delay
  <int> <int> <int>    <int>          <int>     <dbl>
1  2013     1     1      517            515         2
2  2013     1     1      533            529         4
3  2013     1     1      542            540         2
4  2013     1     1      544            545        -1
5  2013     1     1      554            600        -6
# ℹ 13 more variables: arr_time <int>,
#   sched_arr_time <int>, arr_delay <dbl>, carrier <chr>,
#   flight <int>, tailnum <chr>, origin <chr>, dest <chr>,
#   air_time <dbl>, distance <dbl>, hour <dbl>,
#   minute <dbl>, time_hour <dttm>

`filter()`

Filter for flights to RDU in flights:

1flights |>
2  filter(dest == "RDU")

1: Take the flights data frame, and then,
2: Filter for rows where dest is equal to RDU

# A tibble: 8,163 × 19
    year month   day dep_time sched_dep_time dep_delay
   <int> <int> <int>    <int>          <int>     <dbl>
 1  2013     1     1      800            810       -10
 2  2013     1     1      832            840        -8
 3  2013     1     1      851            851         0
 4  2013     1     1      917            920        -3
 5  2013     1     1     1024           1030        -6
 6  2013     1     1     1127           1129        -2
 7  2013     1     1     1157           1205        -8
 8  2013     1     1     1240           1235         5
 9  2013     1     1     1317           1325        -8
10  2013     1     1     1449           1450        -1
# ℹ 8,153 more rows
# ℹ 13 more variables: arr_time <int>,
#   sched_arr_time <int>, arr_delay <dbl>, carrier <chr>,
#   flight <int>, tailnum <chr>, origin <chr>, dest <chr>,
#   air_time <dbl>, distance <dbl>, hour <dbl>,
#   minute <dbl>, time_hour <dttm>

The pipe operator

The pipe, |>, is an operator (a tool) for passing information from one process to another.
Use |> mainly in data pipelines to pass the output of the previous line of code as the first input of the next line of code.
When reading code “in English”, say “and then” whenever you see a pipe.

Delayed flights to RDU

Which airline is the most delayed, on average, arriving in RDU from a New York City airport?

Goal:

# A tibble: 5 × 2
  carrier mean_arr_delay
  <chr>            <dbl>
1 UA               56
2 B6               13.3
3 EV               12.2
4 9E                9.67
5 MQ                8.82

The pipe, in action

1flights

1: Take the flights data frame

# A tibble: 336,776 × 19
    year month   day dep_time sched_dep_time dep_delay
   <int> <int> <int>    <int>          <int>     <dbl>
 1  2013     1     1      517            515         2
 2  2013     1     1      533            529         4
 3  2013     1     1      542            540         2
 4  2013     1     1      544            545        -1
 5  2013     1     1      554            600        -6
 6  2013     1     1      554            558        -4
 7  2013     1     1      555            600        -5
 8  2013     1     1      557            600        -3
 9  2013     1     1      557            600        -3
10  2013     1     1      558            600        -2
# ℹ 336,766 more rows
# ℹ 13 more variables: arr_time <int>,
#   sched_arr_time <int>, arr_delay <dbl>, carrier <chr>,
#   flight <int>, tailnum <chr>, origin <chr>, dest <chr>,
#   air_time <dbl>, distance <dbl>, hour <dbl>,
#   minute <dbl>, time_hour <dttm>

The pipe, in action

1flights |>
2  filter(dest == "RDU")

1: Take the flights data frame,
2: and then filter for flights going to RDU

# A tibble: 8,163 × 19
    year month   day dep_time sched_dep_time dep_delay
   <int> <int> <int>    <int>          <int>     <dbl>
 1  2013     1     1      800            810       -10
 2  2013     1     1      832            840        -8
 3  2013     1     1      851            851         0
 4  2013     1     1      917            920        -3
 5  2013     1     1     1024           1030        -6
 6  2013     1     1     1127           1129        -2
 7  2013     1     1     1157           1205        -8
 8  2013     1     1     1240           1235         5
 9  2013     1     1     1317           1325        -8
10  2013     1     1     1449           1450        -1
# ℹ 8,153 more rows
# ℹ 13 more variables: arr_time <int>,
#   sched_arr_time <int>, arr_delay <dbl>, carrier <chr>,
#   flight <int>, tailnum <chr>, origin <chr>, dest <chr>,
#   air_time <dbl>, distance <dbl>, hour <dbl>,
#   minute <dbl>, time_hour <dttm>

The pipe, in action

1flights |>
2  filter(dest == "RDU") |>
3  group_by(carrier)

1: Take the flights data frame,
2: and then filter for flights going to RDU,
3: and then group by carrier

# A tibble: 8,163 × 19
# Groups:   carrier [5]
    year month   day dep_time sched_dep_time dep_delay
   <int> <int> <int>    <int>          <int>     <dbl>
 1  2013     1     1      800            810       -10
 2  2013     1     1      832            840        -8
 3  2013     1     1      851            851         0
 4  2013     1     1      917            920        -3
 5  2013     1     1     1024           1030        -6
 6  2013     1     1     1127           1129        -2
 7  2013     1     1     1157           1205        -8
 8  2013     1     1     1240           1235         5
 9  2013     1     1     1317           1325        -8
10  2013     1     1     1449           1450        -1
# ℹ 8,153 more rows
# ℹ 13 more variables: arr_time <int>,
#   sched_arr_time <int>, arr_delay <dbl>, carrier <chr>,
#   flight <int>, tailnum <chr>, origin <chr>, dest <chr>,
#   air_time <dbl>, distance <dbl>, hour <dbl>,
#   minute <dbl>, time_hour <dttm>

The pipe, in action

1flights |>
2  filter(dest == "RDU") |>
3  group_by(carrier) |>
4  summarize(mean_arr_delay = mean(arr_delay, na.rm = TRUE))

1: Take the flights data frame,
2: and then filter for flights going to RDU,
3: and then group by carrier,
4: and then calculate the mean arrival delay for each carrier

# A tibble: 5 × 2
  carrier mean_arr_delay
  <chr>            <dbl>
1 9E                9.67
2 B6               13.3
3 EV               12.2
4 MQ                8.82
5 UA               56

The pipe, in action

1flights |>
2  filter(dest == "RDU") |>
3  group_by(carrier) |>
4  summarize(mean_arr_delay = mean(arr_delay, na.rm = TRUE)) |>
5  arrange(desc(mean_arr_delay))

1: Take the flights data frame,
2: and then filter for flights going to RDU,
3: and then group by carrier,
4: and then calculate the mean arrival delay for each carrier,
5: and then arrange in descending order of mean arrival delay.

# A tibble: 5 × 2
  carrier mean_arr_delay
  <chr>            <dbl>
1 UA               56
2 B6               13.3
3 EV               12.2
4 9E                9.67
5 MQ                8.82

Column operations

select(): changes whether or not a column is included
rename(): changes the names of columns
mutate(): changes the values of columns or creates new columns

Groups of rows

group_by(): perform calculations separately for each value of a variable
summarize(): collapses a group into a single row
count(): count unique values of one or more variables

Grammar of data transformation

Data frames and tibbles

NYC Flights

flights – dimensions

flights – first look with glimpse()

flights – first look with names()

flights – first look with head()

tibble vs. data frame

Printing - tibbles

Printing - data.frames

Stricter subsetting – tibbles

Stricter subsetting – data.frames

dplyr

dplyr \(\in\) tidyverse

Row operations

slice()

filter()

The pipe operator

Delayed flights to RDU

The pipe, in action

The pipe, in action

The pipe, in action

The pipe, in action

The pipe, in action

Column operations

Groups of rows

Data frames and `tibble`s

`flights` – dimensions

`flights` – first look with `glimpse()`

`flights` – first look with `names()`

`flights` – first look with `head()`

`tibble` vs. data frame

Printing - `tibble`s

Printing - `data.frame`s

Stricter subsetting – `tibble`s

Stricter subsetting – `data.frame`s

`dplyr`

`slice()`

`filter()`
